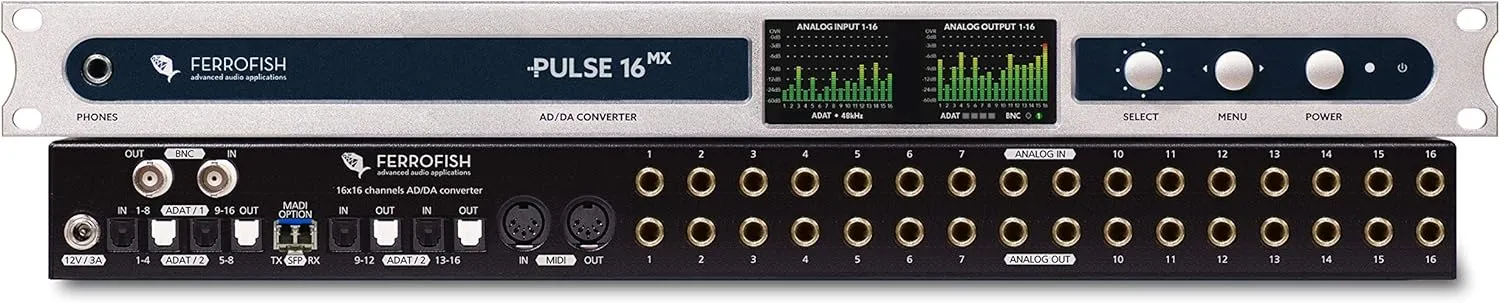

The PULSE16 MX offers maximum performance at affordable cost. In addition to the studio-quality 16 x 16 balanced analog inputs and outputs up to 192kHz, the PULSE16 MX offers both ADAT and MADI – probably the most widely used digital audio interfaces available. Up to 64 x 64 channels (or 16 x 16 channels at 192kHz) can be transmitted over a simple optical MADI cable pair, so high-end multichannel recording is not a problem. Besides, numerous ADAT channels are provided: At 96kHz, 4 x 4 ADAT ports transfer 16 x 16 channels. Packed in a just 1HU, this highly integrated converter has 16 x 16 balanced analog TRS sockets using studio levels up to 20dBu – individually adjustable in 1dB steps. The Low Latency Cirrus Logic converters, accompanied with a temperature-compensated clock and jitter reduction PLL, s best crystal clear sound. The 4 x 4 ADAT ports deliver enough bandwidth to convert all 16 x 16 analog signals at 96kHz, or even 32 x 32 channels at 48kHz. MADI adds another 64 x 64 channels, and is implemented using a modular SFP conection to offer different MADI standards (like Singlemode). Just replace the MADI module by a different model. Configuring the device is a breeze thanks to the two TFT screens. No need to consult the manual, every information is displayed clearly on the screens. Remote control via MIDI and MADI is also possible. The headphone can be connected to any analog or digital input or output: ideal for control or monitoring. The fanless, compact 1HU device is the ultimate choice, when high-end conversion is needed – thanks to the elaborated design the PULSE16 MX is the center device for your equipment.
