Visual fault locator:
Specification:
Universal connector
Working Temperature:0℃ 60℃
Storage Temperature:-20℃ 70℃
Power Supply: AA X 2(not included)
Function:
The visual fault locator is used for the measurement in single-mode or multi-mode fibers.
It features a rugged design, a universal connector and an accurate measurement.
Universally connector for test different ST,SC,FC interfaces
High effective power circuits allow for stable power
Operates in both (Continuous wave) and pulse mode
Fiber optical power meter:
Product Overview:
Handheld optical power meter is a kind of precision and durable portable instrument designed for the installation, operation and maintenance of the optical fiber network. With delicate appearance, can choose to switch the backlight display and automatic shutdown function, a wide range of optical power test, precision test accuracy and user self calibration function and interface design, and the linear index and nonlinear index with screen display
Wavelength range: 850~1625
Uncertainty: ±0.2db
Probe type: InGaAs
Connector: FC/SC
Automatic shutdown: 10min
Weight: 392g
User self-calibration function
Linear and nonlinear index displayed simultaneously
Unique FC SC ST generic interface, without complicated conversion
Applications:
fiber CATV Test Engineering
optical fiber CCTV Test communication engineering
integrated wiring system optical device
production and research
optical communication teaching and testing; other fiber optic engineering
Package included:

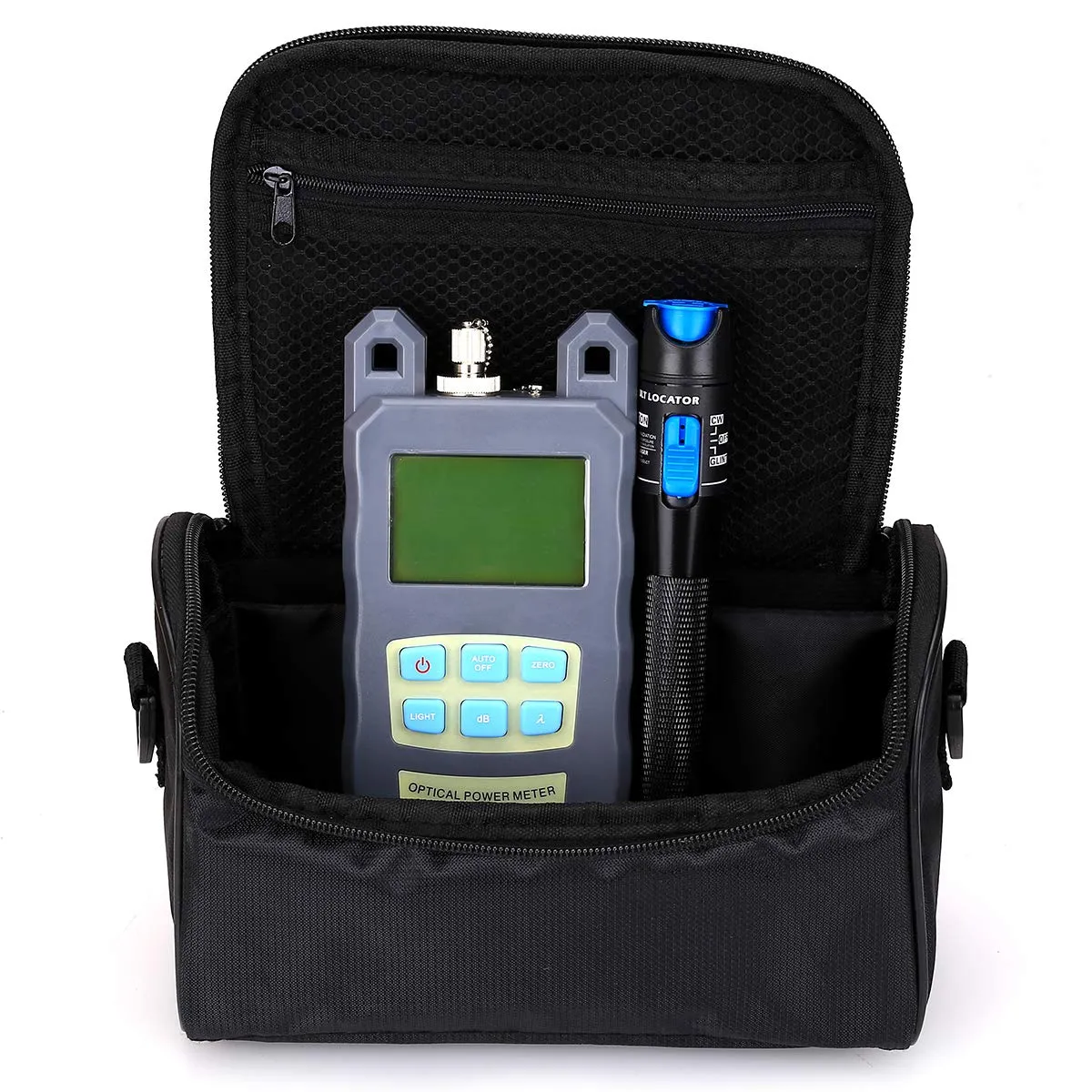

1x fiber optical power meter;1 x visual fault locator;1 x small tool bag
If you have any questions, please feel free to contact us, thank you.
- Is Discontinued By Manufacturer : No
- Package Dimensions : 9.33 x 4.8 x 3.9 inches; 13.83 ounces
- Date First Available : July 8, 2016
- Manufacturer : Shenzhenshi Kelushi Keji Youxiangongsi
